Product Details:
|
| Battery Type: | 18650 Rechargeable Li-ion | Battery Size: | 18.4*65.1mm |
|---|---|---|---|
| Weight: | 48g | Nominal Voltage: | 3.6V |
| Cycle Life: | 500 Times | Product Certifications: | BIS |
| Customization: | Logo/Packaging/Graphic | Protection: | Trade Assurance, On-time Dispatch Guarantee, Refund Policy |
| Warranty: | 1 Year | ||
| High Light: | 3.6 Volt 2600mah 18650 Battery,BIS 2600mah 18650 Battery,3.6Volt high rate 18650 battery |
||

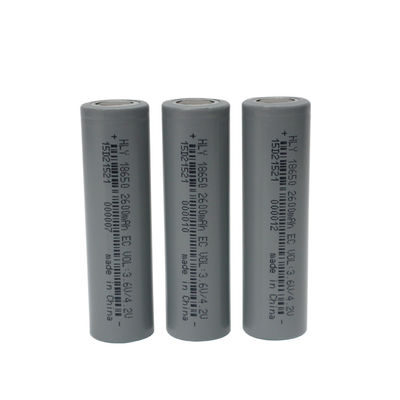

Manufacturer BIS Certification 3.6V 18650 2600mAh High Rate Lithium Ion Battery Cell
PRODUCT DESCRIPTION
Battery Features:
I. Light, small, low current, large capacity, high rate capability, high energy density and long cycle life.
II. High safety, over charge and over discharge protection. When overcharge and discharge, crush, short circuit and heavy impact, there is no flame, no fire, and no explode, meeting international safety standards, such as CE, RoHS, UN38.3, MSDS, FCC, BIS etc.
III. Wide operating temperature range, max recommended charge cell body temperature is from 10℃to 60℃ and discharge’s is from 0℃ to 60℃, stable performance under high and low temperature. When the temperature of the cell is 150 degrees, cell must not fire or explode in 30 minutes.
IV. Environmental characteristics: When in the condition of vibration, drop, static low pressure and temperature cycling, there is no fire, no explosion and no leakage.
V. A variety of battery cell types for choice, like 18650 2000mAh, 2200mAh, 2500mAh, 2600mAh, suitable for many different product fields, meet your different demands.
VI. Independent research, design and development, can be customized as per customers' product requirements, like printing logo, customized packaging and graphic.
Applications:
| Application field of lithium battery | ||||
| Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
| Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden lamp, high pole lamp | Power supply for large ships (airline, war ship, large cruise ship, cargo ship, etc.) |
| Electric special vehicle: Electric golf car, electric sightseeing car, electric engineering car, electric sweeper, electric forklift, police patrol car, electric balance car | Photovoltaic off-grid and grid-connected energy storage power station system | FTTX lithium battery backup | Electric lawn mowers, electric fishing traps, etc | Power supply for aircraft (power supply for large civil aircraft, commercial aircraft, helicopter, fighter aircraft and other flight instruments) |
| EV; Electric vehicles; Cell-driven vehicles (Hybrid and pure) |
Special uninterruptible power supply system for power | Communication building 336V HVDC data center backup power | Electric model, airplane model | Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.) |
| Electric bus/Medium bus (Hybrid and pure) |
Integrated power system | Renewable energy (lithium iron battery + photovoltaic +...) Base station power supply | Electric robot; Electromotive robot | Military armor, power supply for civil large excavation equipment (tank, armored vehicle, military large armored vehicle, civil large excavation equipment, large crane, etc.) |
Specification:
| ITEM | SPECIFICATION |
| Nominal capacity | 2600 mAh@0.5C |
| Minimum capactiy |
2600 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (1300mA) |
| Standard discharge current | 1C (2600mA) |
| Max charge current |
1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
| Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature |
Charge: 0~45℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension |
Height: 65.1 mm Diameter: 18.4 mm |
| Weight | ≤ 48g |
How to choose a high quality lithium battery?
1. A grade battery cell, with full capacity for each battery cell.
2. BMS: water proof, antistatic, over current protection, over voltage protection, with sealed case.
3. Water proof case, plastic or steel case available by customer's requirement.
4. High grade raw material.
5. 12 hours & 3 cycles charging/discharging test.
Payment&Shipping:
Partner relationship:
| Frequently asked questions | ||
| No. | Questions | Answers |
| 1 | Are you a factory or company? | Yes, we are a factory with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery. |
| 2 | Do you have MOQ for your batteries? | OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery is 192 pcs. |
| 3 | Where can I get the price? | We usually quote within 24 hours after we get your inquiry. |
| 4 | Can I print my own logo on the product? | Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample. |
| 5 | What about the lead time? | Sample needs 1 day, neutral order of mass production needs 3-7 working days. If OEM of bulk orders, it would be about 7~15 days. |
| 6 | What's the payment term? | T/T, L/C, Paypal are acceptable. Mostly 30% T/T in advance, the rest paid before shipping. |
| 7 | How to solve the technical problem? | 24 hours after-service consultancy just for you. If you meet any problem, please don't hesitate to contact us. |
